Description

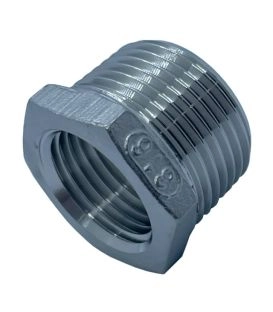

BSP Hexagonal Male to Female Reducing Bush – A4 (T316) Marine Grade Stainless Steel
Male thread: Taper Thread (BSPT / R Thread)
Female Thread: Parallel (BSPP / G Thread)
Thread: according to EN 10226-1 (EX ISO 7-1)
Conical male thread, cylindric female thread
Taper 1:16 on the diameter
The angle of threads 55°
Maximum operating pressure 150 lbs = 10,34 Bar PN 10
Dimensions:
| Size (BSP) | I (mm) | J (mm) | Drawing |
| 1/4″ Male to 1/8″ Female | 14.5 | 14.5 | |
| 3/8″ Male to 1/4″ Female | 18 | 16 | |
| 1/2″ Male to 3/8″ Female | 21.4 | 19.5 | |
| 3/4″ Male to 1/2″ Female | 27 | 21 | |
| 1″ Male to 3/4″ Female | 33.9 | 24 | |
| 1-1/4″ Male to 1″ Female | 42.7 | 27 | |
| 1-1/2″ Male to 1-1/4″ Female | 48.6 | 27 | |
| 2″ Male to 1-1/2″ Female | 60.5 | 31 |
Remember, BSP threads are measured differently:
