Description

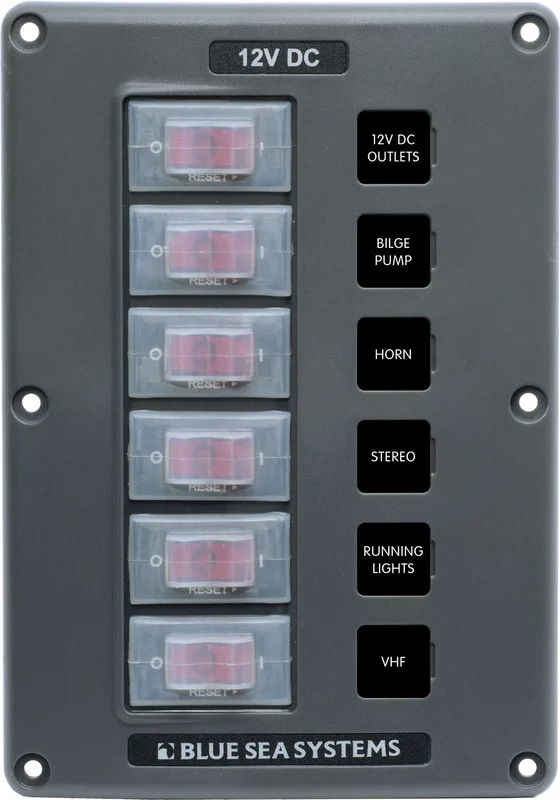

Blue Sea Systems Water-Resistant Circuit Breaker Switch Panel – Gray, 6 Positions
Model: 4322-BSS
- Illuminated 15A circuit breakers provide switching, “ON” indication and overcurrent protection
- Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
- Polycarbonate/ABS panel surface is UV-stabilized, ?ame retardant, and will not corrode
- Silicon breaker boots and gasket protects against water ingress
- Low profle makes it easy to install in tight spaces
- Fast-on circuit breaker connectors make it quick to wire
- Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
Specifications
| Color | Gray |
| Positions | 6 |
| Nominal Voltage | 12V DC |
| Circuit Protection | Circuit Breaker |
| Maximum Amperage | 45A9A @ 24V DC (per circuit) |
| Terminal Type | 1/4″ Male quick connect |
| Hardware | Stainless Steel #6 x 5/8″ mounting screws |
| Ring Terminal Size | M5 (#10) |
| Dimensions | 6.625″H x 4.625″W x 1.75″D |
WARNING: Cancer and Reproductive Harm –
Brand: Blue Sea Systems
UPC: 632085043223
Model Number: 4322-BSS
Weight: 0.900000
