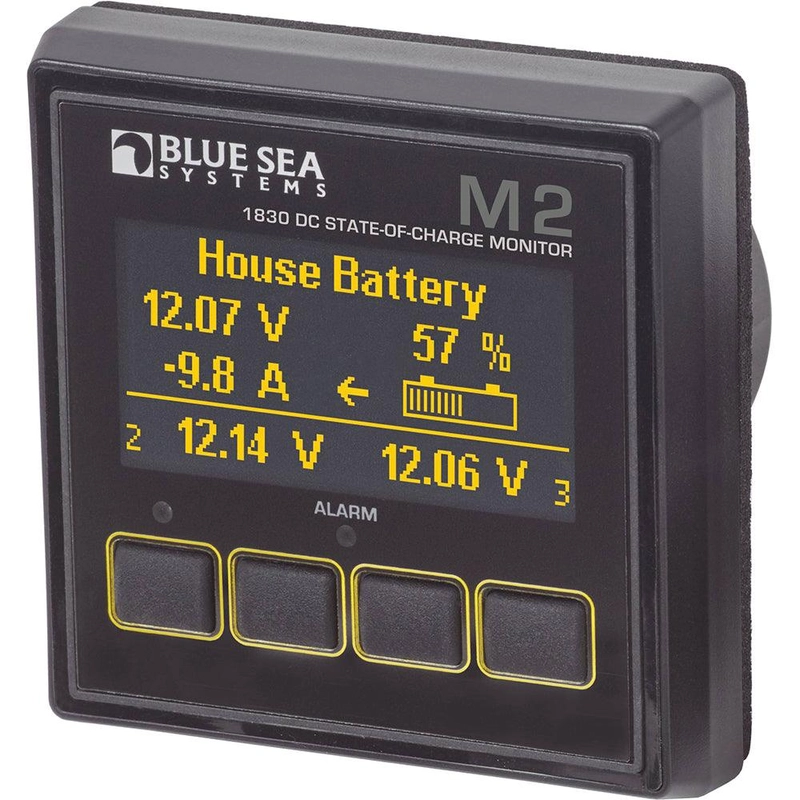

Blue Sea 1830 M2 DC SoC State of Charge Monitor [1830]

Description

M2 DC SoC State of Charge Monitor

Accurately measure and monitor the state-of-charge of your batteries. Supports programmable shunt ratios.

Features:

• Auto-dimming, bright OLED display is easy to read
• Easy to adjust
• 92dB alarm on all models
• Isolated MOSFET relay

Specifications:

• Meter: Current Voltage
• Function: 8 to 70V to 5000A (500A with included shunt)
• Alarms: High Current, High/Low Voltage, Low Battery
• Display Size: 55mm x 28mm
• Input Voltage: 7-70V DC
• Maximum Power Consumption:1.00Watt
• Minimum Power Consumption: 0.3 Watt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Owner’s Manual (pdf)
