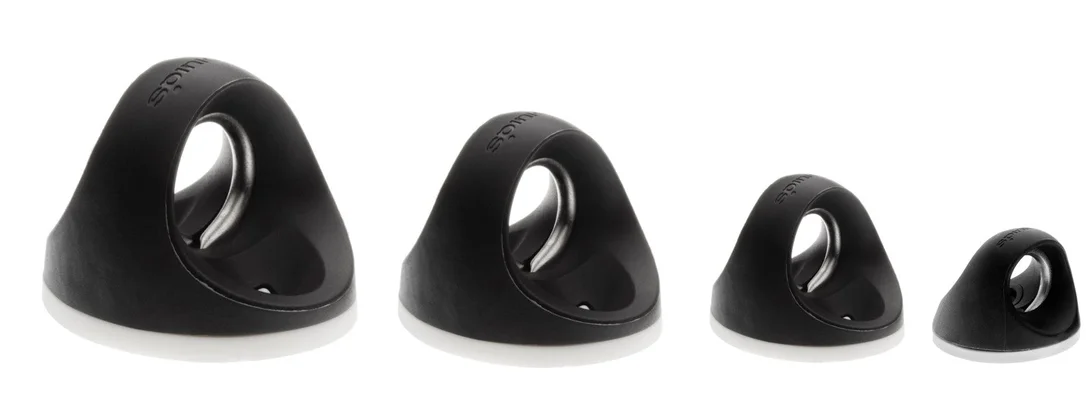

BE – Low profile control line guides by Spinlock

Description

Low profile control line guides

• For guiding lines between two fixed points with little horizontal or vertical deflection
• Guides extra lines to the cockpit cleats and clutches when no organiser sheaves are available
• Double screw fitting (except BE06)
• Stainless steel rope guide
• Low profile avoids snagging
• Integral gasket sealed base

Max Line Diameter
BE06 – 6mm (1/4″)BE10/TF – 10mm (3/8″)
BE12/TF – 12mm (1/2″)
BE16/TF – 16mm (5/8″)
Weights & FastenersBE06/TF – 5g (0.18oz)
BE10/TF – 8g (0.28oz)
BE12/TF – 14g (0.49oz)
BE16/TF – 35g (1.2oz)FastenersBE06/TF – 2x M4 (5/32″) CSK (not supplied)
BE10/TF – 2x M5 (3/16″) CSK (not supplied)
BE12/TF – 2x M5 (3/16″) CSK (not supplied)
BE16/TF – 2x M6 (1/4″) CSK (not supplied)
