Description

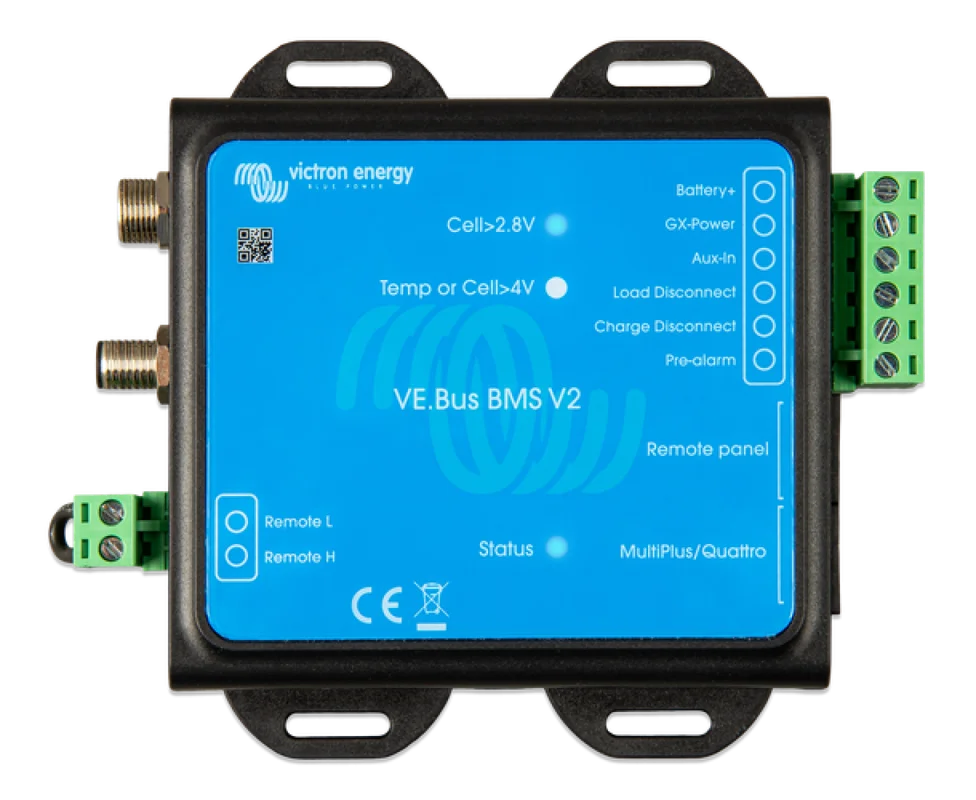

Battery Management System BMS MK2. 23.8×94.5×105.5mm 0.18kg.(BMS300200200)
Product Information
The BMS V2 is a Battery Management System (BMS) designed to interface with and protect a single, or multiple Victron Lithium Battery Smart 12,8V & 25,6V (LiFePO4 or LFP) in systems that have Victron inverters or inverter/chargers with communication. It monitors and protects the batteries against over voltage and under voltage of any individual cell, and also over temperature or under temperature conditions.
Based on the status of the battery or batteries, the BMS will:
Generate a pre-alarm signal to alert of an imminent cell under voltage condition.
Disable inverting in inverters or inverter/chargers via , and disable other loads via the ‘Load Disconnect’ terminal in the event of a cell under voltage condition.
Disable charging in inverters or inverter/chargers via and disable other chargers via the ‘Charge Disconnect’ terminal in the event of a cell overvoltage, under temperature or over temperature condition.
Remote on/off terminals.
Ability to disable and solar chargers via a GX device.
Allowing control of the inverter/charger from multiple devices, like the Digital Multi Control, the Smart dongle and/or a GX device.
Auxiliary power input and output terminals that allow a GX device to remain powered in the event of a system shutdown.
Communication with products
MultiPlus, Quattro or Inverters connect to the ‘MultiPlus/Quattro’ port with a standard RJ45 UTP cable. The BMS disables inverting in the case of a cell under voltage condition and disables charging in the case of a cell over voltage or temperature condition.
Communication with remote devices
A GX device (such as a Cerbo GX), Digital Multi Control (DMC) panel or a Smart dongle (including any combination) can be connected to the BMS via the ‘Remote panel’ port. These accessories can all be used in combination with the BMS to remotely control the Inverter or inverter/charger switch state (on/off/charger-only).
Datasheet-VE-Bus-BMS-V2-EN
Manufacturer Part Number: BMS300200200
