Description

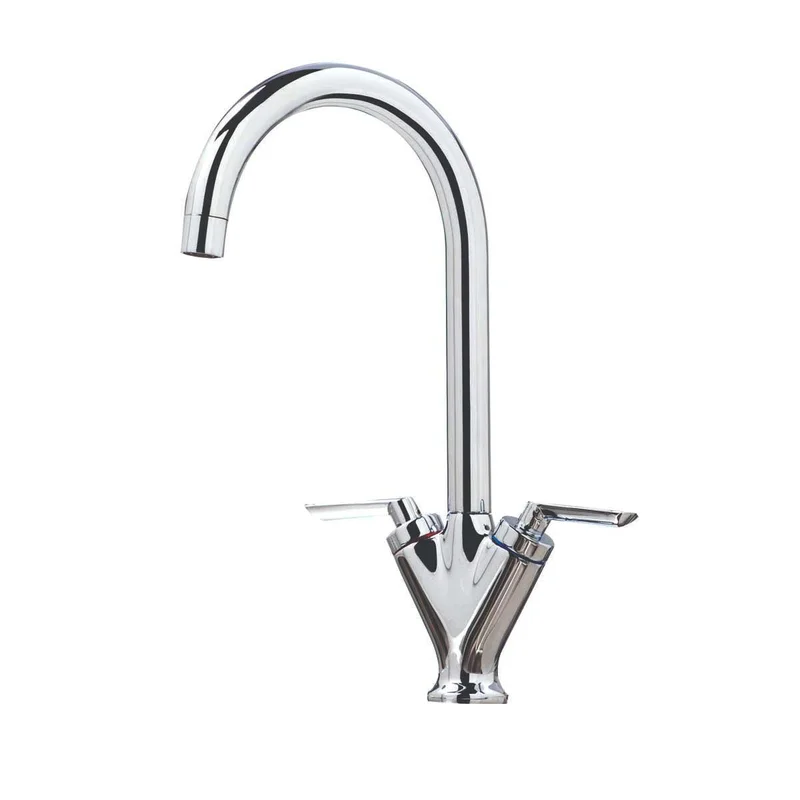

Olicana kitchen tap crafted from high-quality stainless steel and brass, featuring deck-mounted installation and swivel spout to allow for easy manoeuvrability.
Performance:
– Minimum Operating Pressure: 0.2 bar
– Maximum Operating Pressure: 5 bar
Flow Rates:
– At 0.2 bar: 4.3 l/min
– At 0.5 bar: 7.2 l/min
– At 1 bar: 9.7 l/min
– At 2 bar: 13.6 l/min
– At 3 bar: 16.5 l/min
Connections and Installation:
– Flexible Tails Included: Yes
– Number of Tap Holes Required: 1
– Handle Type: Lever
– Swivel Spout: Yes
– Inlet Connection: 1/2″ M10
– Tap Hole Diameter: 35mm
– Tap Type: Manual Mixer
– Valve / Cartridge Type: Quarter Turn Cartridge
– Includes waste: No
| Finish | Chrome |
| Flow Rate | At 0.2 bar: 4.3 l/min, At 0.5 bar: 7.2 l/min, At 1 bar: 9.7 l/min, At 2 bar: 13.6 l/min, At 3 bar: 16.5 l/min |
| Height | 340.5mm |
| Inlet Connection | 1/2” M10 |
| Material | Brass, Stainless Steel |
| Weight | 1.09kg |
| Width | 206mm |
| Brand | AG |
| Diameter | Tap hole: 35mm |
| Model | Olicana |
| Operating Pressure | Minimum: 0.2 bar, Maximum: 5 bar |
Data Sheet KT11 minInstallation Guide minWRAS Certificate KT11 min
Manufacturer Part Number: KT11
